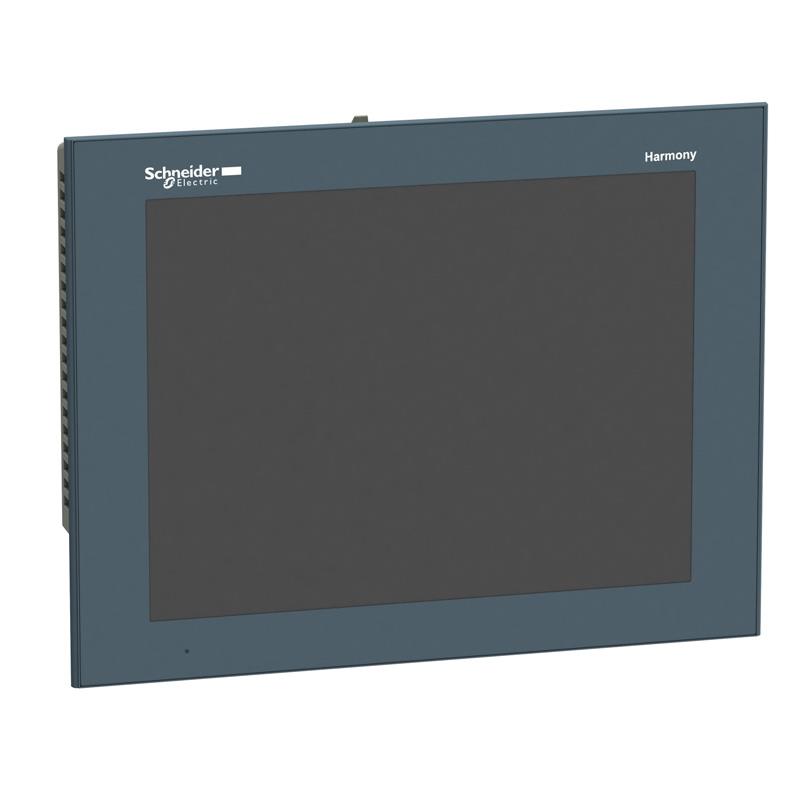

HMIGTO1300 - HMIGTO1300 : Màn hình cảm ứng nâng cao điều khiển

THÔNG SỐ KỸ THUẬT

terminal type
Touchscreen display


display type
Backlit colour TFT LCD


display resolution
320 x 240 pixels QVGA


touch sensitive zone
1024 x 1024


Type
Màn hình HMI
touch panel
Resistive film, 1000000 cycles


backlight lifespan
50000 hours white at 25 °C


brightness
16 levels - control by touch panel
16 levels - control by software


character font
Chinese (simplified Chinese)
ASCII (European characters)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)


[Us] rated supply voltage
24 V DC


supply voltage limits
19.2…28.8 V


inrush current
30 A


maximum power consumption in W
5.2 W when power is not supplied to external devices
4.2 W when backlight is OFF
4.3 W when backlight is dimmed
9.6 W


local signalling
Status LED green, steady for offline
Status LED green, steady for operating
Status LED orange, flashing for software starting up
Status LED red, steady for power supply (ON)
Status LED clear, faded for power supply (OFF)


software designation
Vijeo Designer configuration software >= V6.1


memory description
Flash EPROM, 64 MB


data backed up
128 kB internal RAM (SRAM)


downloadable protocols
Schneider Electric Modicon Modbus
Schneider Electric Modicon Uni-TE
Schneider Electric Modicon Modbus Plus
Schneider Electric Modicon FIPWAY
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols


integrated connection type
COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI
USB 2.0 type A
USB 2.0 type mini B


product mounting
Flush mounting


fixing mode
By 4 screw clamps


front material
PPT


enclosure material
PPT


type of cooling
Natural convection


width
132 mm


height
106 mm


depth
42 mm


net weight
0.4 kg
