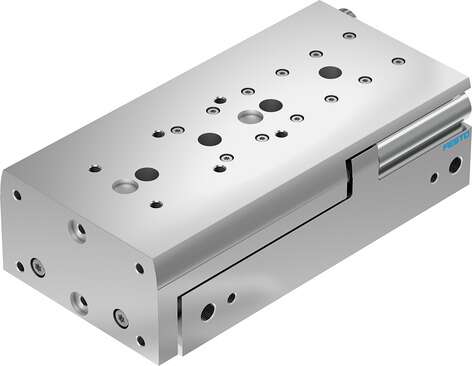

FESTO Xy lanh FESTO DGST-10-20-PA

Xy lanh Festo DGST-10-20-PA

Mã sản phẩm: 8085117

Stroke

100 mm

Adjustable end position range/length front

47 mm

Adjustable end position range/length rear

45.4 mm

Piston diameter

25 mm

Operating mode, drive unit

Yoke

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

optional

Guide

Ball bearing cage guide

Design

Twin piston
Yoke
Piston rod
Slide

Position detection

Via proximity switch

Symbol

00991249

Operating pressure

0.1 MPa … 0.8 MPa

Operating pressure

1 bar … 8 bar

Operating pressure

14.5 psi … 116 psi

Max. speed

0.8 m/s

Repetition accuracy

<= 0.3 mm

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC

1 – Low corrosion stress

Ambient temperature

-10 °C … 60 °C

Impact energy in end positions

0.45 J

Cushioning length

1.2 mm

Max. force Fy

1,160 N

Max. force Fz

1,160 N

Max. moment Mx

18 Nm

Max. moment My

11 Nm

Max. moment Mz

11 Nm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

495 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

589 N

Moving mass

1,524.5 g

Product weight

3,141 g

Type of mounting

With through-hole

Pneumatic connection

G1/8

Note on materials

RoHS-compliant

Material cover

Wrought aluminium alloy

Material seals

HNBR

Material guide

POM
TPE-E
High-alloy steel

Material housing

Wrought aluminium alloy
